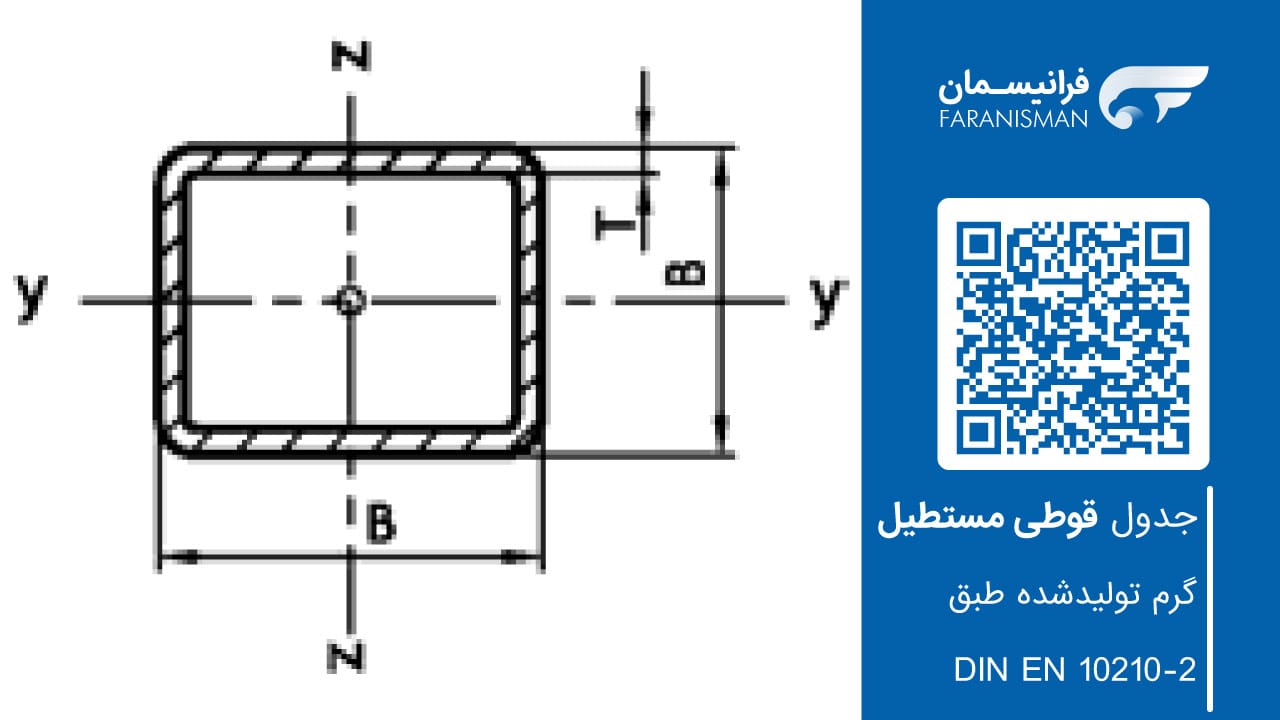

جدول قوطی مستطیل گرم تولید شده طبق DIN EN 10210-2
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 23/فروردین/1404
زمان مطالعه: 4 دقیقه
| H mm | B mm | T mm | A cm2 | M kg/m | Iy cm4 | Wy cm3 | iy cm | Iz cm4 | Wz cm3 | iz cm |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 30 | 3 | 4.34 | 3.41 | 13.6 | 5.43 | 1.77 | 5.94 | 3.96 | 1.17 |
| 50 | 30 | 4 | 5.59 | 4.39 | 16.5 | 6.6 | 1.72 | 7.08 | 4.72 | 1.13 |
| 60 | 40 | 3 | 5.54 | 4.35 | 26.5 | 8.82 | 2.18 | 13.9 | 6.95 | 1.58 |
| 60 | 40 | 4 | 7.19 | 5.64 | 32.8 | 10.9 | 2.14 | 17 | 8.52 | 1.54 |
| 80 | 40 | 3 | 6.74 | 5.29 | 54.2 | 13.6 | 2.84 | 18 | 9 | 1.63 |
| 80 | 40 | 4 | 8.79 | 6.9 | 68.2 | 17.1 | 2.79 | 22.2 | 11.1 | 1.59 |
| 80 | 40 | 5 | 10.7 | 8.42 | 80.3 | 20.1 | 2.74 | 25.7 | 12.9 | 1.55 |
| 90 | 50 | 3 | 7.94 | 6.24 | 84.4 | 18.8 | 3.26 | 33.5 | 13.4 | 2.05 |
| 90 | 50 | 4 | 10.4 | 8.15 | 107 | 23.8 | 3.21 | 41.9 | 16.8 | 2.01 |
| 90 | 50 | 5 | 12.7 | 9.99 | 127 | 28.3 | 3.16 | 49.2 | 19.7 | 1.97 |
| 100 | 50 | 4 | 11.2 | 8.78 | 140 | 27.9 | 3.53 | 46.2 | 18.5 | 2.03 |
| 100 | 50 | 5 | 13.7 | 10.8 | 167 | 33.3 | 3.48 | 54.3 | 21.7 | 1.99 |
| 100 | 50 | 6.3 | 16.9 | 13.3 | 197 | 39.4 | 3.42 | 63 | 25.2 | 1.93 |
| 100 | 60 | 4 | 12 | 9.41 | 158 | 31.6 | 3.63 | 70.5 | 23.5 | 2.43 |
| 100 | 60 | 5 | 14.7 | 11.6 | 189 | 37.8 | 3.58 | 83.6 | 27.9 | 2.38 |
| 100 | 60 | 6.3 | 18.1 | 14.2 | 225 | 45 | 3.52 | 98.1 | 32.7 | 2.33 |
| 120 | 60 | 4 | 13.6 | 10.7 | 249 | 41.5 | 4.28 | 83.1 | 27.7 | 2.47 |
| 120 | 60 | 5 | 16.7 | 13.1 | 299 | 49.9 | 4.23 | 98.8 | 32.9 | 2.43 |
| 120 | 60 | 6.3 | 20.7 | 16.2 | 358 | 59.7 | 4.16 | 116 | 38.8 | 2.37 |
| 120 | 80 | 4 | 15.2 | 11.9 | 303 | 50.4 | 4.46 | 161 | 40.2 | 3.25 |
| 120 | 80 | 5 | 18.7 | 14.7 | 365 | 60.9 | 4.42 | 193 | 48.2 | 3.21 |
| 120 | 80 | 6.3 | 23.2 | 18.2 | 440 | 73.3 | 4.36 | 230 | 57.6 | 3.15 |
| 140 | 80 | 4 | 16.8 | 13.2 | 441 | 62.9 | 5.12 | 184 | 46 | 3.31 |
| 140 | 80 | 5 | 20.7 | 16.3 | 534 | 76.3 | 5.08 | 222 | 55.3 | 3.27 |
| 140 | 80 | 6.3 | 25.7 | 20.2 | 646 | 92.3 | 5.01 | 265 | 66.2 | 3.21 |
| 150 | 100 | 6.3 | 29.5 | 23.1 | 898 | 120 | 5.52 | 474 | 94.8 | 4.01 |
| 150 | 100 | 8 | 36.8 | 28.9 | 1087 | 145 | 5.44 | 569 | 114 | 3.94 |
| 150 | 100 | 10 | 44.9 | 35.3 | 1282 | 171 | 5.34 | 665 | 133 | 3.85 |
| 160 | 80 | 5 | 22.7 | 17.8 | 744 | 93 | 5.72 | 249 | 62.3 | 3.31 |
| 160 | 80 | 6.3 | 28.2 | 22.2 | 903 | 113 | 5.66 | 299 | 74.8 | 3.26 |
| 160 | 80 | 8 | 35.2 | 27.6 | 1091 | 136 | 5.57 | 356 | 89 | 3.18 |
| 160 | 80 | 10 | 42.9 | 33.7 | 1284 | 161 | 5.47 | 411 | 103 | 3.1 |
| 180 | 100 | 5 | 26.7 | 21 | 1153 | 128 | 6.57 | 460 | 92 | 4.15 |
| 180 | 100 | 6.3 | 33.3 | 26.1 | 1407 | 156 | 6.5 | 557 | 111 | 4.09 |
| 180 | 100 | 8 | 41.6 | 32.6 | 1713 | 190 | 6.42 | 671 | 134 | 4.02 |
| 180 | 100 | 10 | 50.9 | 40 | 2036 | 226 | 6.32 | 787 | 157 | 3.93 |
| 200 | 100 | 6.3 | 35.8 | 28.1 | 1829 | 183 | 7.15 | 613 | 123 | 4.14 |
| 200 | 100 | 8 | 44.8 | 35.1 | 2234 | 223 | 7.06 | 739 | 148 | 4.06 |
| 200 | 100 | 10 | 54.9 | 43.1 | 2664 | 266 | 6.96 | 869 | 174 | 3.98 |
| 200 | 100 | 12.5 | 67.1 | 52.7 | 3136 | 314 | 6.84 | 1004 | 201 | 3.87 |
| 200 | 120 | 6.3 | 38.3 | 30.1 | 2065 | 207 | 7.34 | 929 | 155 | 4.92 |
| 200 | 120 | 8 | 48 | 37.6 | 2529 | 253 | 7.26 | 1128 | 188 | 4.85 |
| 200 | 120 | 10 | 58.9 | 46.3 | 3026 | 303 | 7.17 | 1337 | 223 | 4.76 |
| 200 | 120 | 12.5 | 72.1 | 56.6 | 3576 | 358 | 7.04 | 1562 | 260 | 4.66 |
| 250 | 150 | 6.3 | 48.4 | 38 | 4143 | 331 | 9.25 | 1874 | 250 | 6.22 |
| 250 | 150 | 8 | 60.8 | 47.7 | 5111 | 409 | 9.17 | 2298 | 306 | 6.15 |
| 250 | 150 | 10 | 74.9 | 58.8 | 6174 | 494 | 9.08 | 2755 | 367 | 6.06 |
| 250 | 150 | 12.5 | 92.1 | 72.3 | 7378 | 591 | 8.96 | 3265 | 435 | 5.96 |
| 260 | 180 | 6.3 | 53.4 | 41.9 | 5166 | 397 | 9.83 | 2929 | 325 | 7.4 |
| 260 | 180 | 8 | 67.2 | 52.7 | 6390 | 492 | 9.75 | 3608 | 401 | 7.33 |
| 260 | 180 | 10 | 82.9 | 65.1 | 7741 | 595 | 9.66 | 4351 | 483 | 7.24 |
| 260 | 180 | 12.5 | 102 | 80.1 | 9299 | 715 | 9.54 | 5196 | 577 | 7.13 |
| 300 | 200 | 6.3 | 61 | 47.9 | 7829 | 522 | 11.3 | 4193 | 419 | 8.29 |
| 300 | 200 | 8 | 76.8 | 60.3 | 9717 | 648 | 11.3 | 5184 | 518 | 8.22 |
| 300 | 200 | 10 | 94.9 | 74.5 | 11819 | 788 | 11.2 | 6278 | 628 | 8.13 |
| 300 | 200 | 12.5 | 117 | 91.9 | 14273 | 952 | 11 | 7537 | 754 | 8.02 |
| 350 | 250 | 8 | 92.8 | 72.8 | 16449 | 940 | 13.3 | 9798 | 784 | 10.3 |
| 350 | 250 | 10 | 115 | 90.2 | 20102 | 1149 | 13.2 | 11937 | 955 | 10.2 |
| 350 | 250 | 12.5 | 142 | 112 | 24419 | 1395 | 13.1 | 14444 | 1156 | 10.1 |
| 350 | 250 | 16 | 179 | 141 | 30011 | 1715 | 12.9 | 17654 | 1412 | 9.93 |
| 400 | 200 | 8 | 92.8 | 72.8 | 19562 | 978 | 14.5 | 6660 | 666 | 8.47 |
| 400 | 200 | 10 | 115 | 90.2 | 23914 | 1196 | 14.4 | 8084 | 808 | 8.39 |
| 400 | 200 | 12.5 | 142 | 112 | 29063 | 1453 | 14.3 | 9738 | 974 | 8.28 |
| 400 | 200 | 16 | 179 | 141 | 35738 | 1787 | 14.1 | 11824 | 1182 | 8.13 |
| 450 | 250 | 8 | 109 | 85.4 | 30082 | 1337 | 16.6 | 12142 | 971 | 10.6 |
| 450 | 250 | 10 | 135 | 106 | 36895 | 1640 | 16.5 | 14819 | 1185 | 10.5 |
| 450 | 250 | 12.5 | 167 | 131 | 45026 | 2001 | 16.4 | 17973 | 1438 | 10.4 |
| 450 | 250 | 16 | 211 | 166 | 55705 | 2476 | 16.2 | 22041 | 1763 | 10.2 |
| 500 | 300 | 10 | 155 | 122 | 53762 | 2150 | 18.6 | 24439 | 1629 | 12.6 |
| 500 | 300 | 12.5 | 192 | 151 | 65813 | 2633 | 18.5 | 29780 | 1985 | 12.5 |
| 500 | 300 | 16 | 243 | 191 | 81783 | 3271 | 18.3 | 36768 | 2451 | 12.3 |
| 500 | 300 | 20 | 300 | 235 | 98777 | 3951 | 18.2 | 44078 | 2939 | 12.1 |

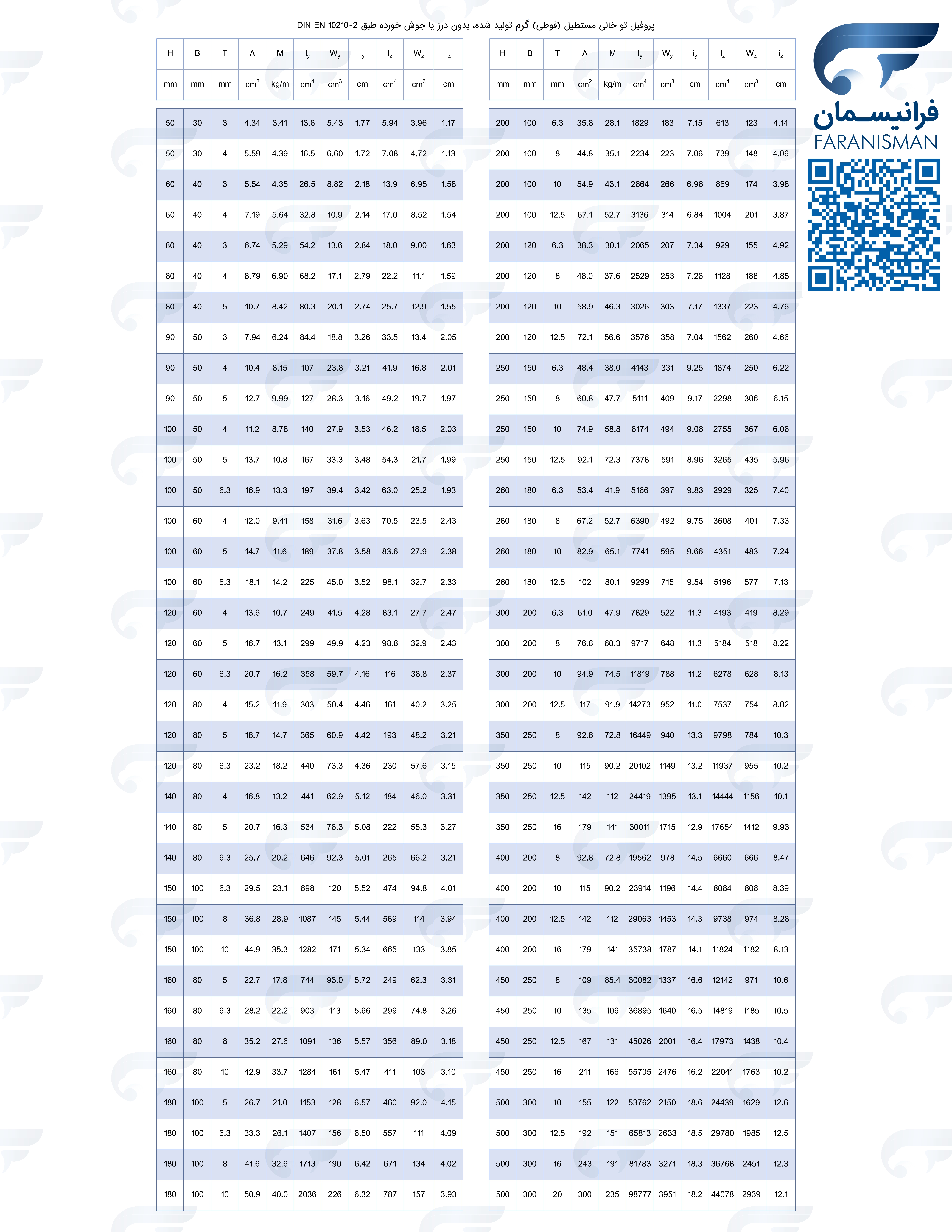

مشاهده تمام صفحه " جدول قوطی مستطیل گرم تولید شده طبق DIN EN 10210-2 "
