جدول نبشی با لبه های مساوی و گرد استاندارد نشده
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 22/فروردین/1404
زمان مطالعه: 4 دقیقه
| a | s | r1 | r2 | A cm2 | G kg/m | e cm | w cm | v1 cm | Iy=Iz cm4 | Wy=Wz cm3 | iy=iz cm | Iη cm4 | iη cm | Iζ cm4 | Wζ cm3 | iζ cm | d1 mm | w1 mm | w2 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 5 | 5 | 2.5 | 2.78 | 2.18 | 0.92 | 2.12 | 1.3 | 2.16 | 1.04 | 0.88 | 3.41 | 1.11 | 0.91 | 0.7 | 0.57 | 8.4 | 17 | - |
| 35 | 5 | 5 | 2.5 | 3.28 | 2.57 | 1.04 | 2.47 | 1.47 | 3.56 | 1.45 | 1.04 | 5.63 | 1.31 | 1.49 | 1.01 | 0.67 | 11 | 18 | - |
| 45 | 4 | 7 | 3.5 | 3.49 | 2.74 | 1.23 | 3.18 | 1.75 | 6.43 | 1.97 | 1.36 | 10.2 | 1.71 | 2.68 | 1.53 | 0.88 | 13 | 25 | - |
| 45 | 5 | 7 | 3.5 | 4.3 | 3.38 | 1.28 | 3.18 | 1.81 | 7.83 | 2.43 | 1.35 | 12.4 | 1.7 | 3.25 | 1.8 | 0.87 | 13 | 25 | - |
| 50 | 7 | 7 | 3.5 | 6.56 | 5.15 | 1.49 | 3.54 | 2.11 | 14.6 | 4.15 | 1.49 | 23.1 | 1.88 | 6.02 | 2.85 | 0.96 | 13 | 30 | - |
| 55 | 6 | 8 | 4 | 6.31 | 4.95 | 1.56 | 3.89 | 2.21 | 17.3 | 4.4 | 1.66 | 27.4 | 2.08 | 7.24 | 3.28 | 1.07 | 17 | 30 | - |
| 70 | 9 | 9 | 4.5 | 11.9 | 9.34 | 2.05 | 4.95 | 2.9 | 52.6 | 10.6 | 2.1 | 83.1 | 2.64 | 22 | 7.59 | 1.36 | 21 | 40 | - |
| 75 | 7 | 10 | 5 | 10.1 | 7.94 | 2.09 | 5.3 | 2.95 | 52.4 | 9.67 | 2.28 | 83.6 | 2.88 | 21.1 | 7.15 | 1.45 | 23 | 40 | - |
| 80 | 6 | 10 | 5 | 9.35 | 7.34 | 2.17 | 5.66 | 3.07 | 55.8 | 9.57 | 2.44 | 88.5 | 3.08 | 23.1 | 7.54 | 1.57 | 23 | 45 | - |
| 100 | 14 | 12 | 6 | 26.2 | 20.6 | 2.98 | 7.07 | 4.21 | 235 | 33.5 | 3 | 372 | 3.77 | 98.3 | 23.4 | 1.94 | 25 | 55 | - |
| 110 | 10 | 12 | 6 | 21.2 | 16.6 | 3.07 | 7.78 | 4.34 | 239 | 30.1 | 3.36 | 379 | 4.23 | 98.6 | 22.7 | 2.16 | 25 | 45 | 70 |
| 110 | 12 | 13 | 6.5 | 25.1 | 19.7 | 3.15 | 7.78 | 4.45 | 279 | 35.5 | 3.33 | 443 | 4.2 | 115 | 25.8 | 2.14 | 25 | 45/50 | 70 |
| 120 | 11 | 13 | 6.5 | 25.4 | 19.9 | 3.36 | 8.49 | 4.75 | 341 | 39.5 | 3.66 | 541 | 4.62 | 140 | 29.5 | 2.35 | 25 | 50 | 80 |
| 120 | 13 | 13 | 6.5 | 29.7 | 23.3 | 3.44 | 8.49 | 4.86 | 394 | 46 | 3.64 | 626 | 4.59 | 162 | 33.4 | 2.34 | 25 | 50 | 80 |
| 120 | 15 | 13 | 6.5 | 33.9 | 26.6 | 3.51 | 8.49 | 4.97 | 445 | 52.4 | 3.62 | 706 | 4.56 | 184 | 37 | 2.33 | 25 | 50 | 80 |
| 140 | 10 | 27.2 | 21.4 | 3.79 | 5.37 | 504 | 49.3 | 4.3 | 802 | 5.43 | 207 | 38.5 | 2.76 | 28 | 55 | 95 | |||
| 140 | 13 | 15 | 7.5 | 35 | 27.5 | 3.92 | 9.9 | 5.54 | 638 | 63.3 | 4.27 | 1010 | 5.38 | 262 | 47.3 | 2.74 | 28 | 55 | 95 |
| 140 | 15 | 15 | 7.5 | 40 | 31.4 | 4 | 9.9 | 5.66 | 723 | 72.3 | 4.25 | 1150 | 5.36 | 298 | 52.7 | 2.73 | 28 | 55 | 95 |
| 150 | 14 | 16 | 8 | 40.3 | 31.6 | 4.21 | 10.6 | 5.95 | 845 | 78.2 | 4.58 | 1340 | 5.77 | 347 | 58.3 | 2.94 | 28 | 60 | 105 |
| 150 | 16 | 16 | 8 | 45.7 | 35.9 | 4.29 | 10.6 | 6.07 | 948 | 88.7 | 4.56 | 1510 | 5.74 | 391 | 64.4 | 2.93 | 28 | 60 | 105 |
| 150 | 18 | 16 | 8 | 51 | 40.1 | 4.36 | 10.6 | 6.17 | 1050 | 99.3 | 4.54 | 1670 | 5.7 | 438 | 71 | 2.93 | 28 | 60 | 105 |
| 150 | 20 | 16 | 8 | 56.3 | 44.2 | 4.44 | 10.6 | 6.28 | 1150 | 100 | 4.51 | 1820 | 5.68 | 477 | 76 | 2.91 | 28 | 60/65 | 105 |
| 160 | 17 | 17 | 8.5 | 51.8 | 40.7 | 4.57 | 11.3 | 6.46 | 1230 | 108 | 4.86 | 1950 | 6.13 | 506 | 78.3 | 3.13 | 28 | 60 | 115 |
| 160 | 19 | 17 | 8.5 | 57.5 | 45.1 | 4.65 | 11.3 | 6.58 | 1350 | 118 | 4.84 | 2140 | 6.16 | 558 | 84.8 | 3.12 | 28 | 60/65 | 115 |
| 180 | 20 | 18 | 9 | 68.4 | 53.7 | 5.18 | 12.7 | 7.33 | 2040 | 160 | 5.47 | 3260 | 6.9 | 830 | 113 | 3.49 | 28 | 60/65 | 135 |
| 180 | 22 | 18 | 9 | 74.7 | 58.6 | 5.26 | 12.7 | 7.44 | 2210 | 174 | 5.44 | 3510 | 6.86 | 918 | 123 | 3.5 | 28 | 60/65 | 135 |
| 200 | 22 | 18 | 9 | 83.5 | 65.6 | 5.76 | 14.1 | 8.14 | 3094 | 217 | 6.09 | 4913 | 7.67 | 1276 | 156 | 3.91 | 28 | 65/70 | 150 |
| 200 | 26 | 18 | 9 | 97.6 | 76.6 | 5.91 | 14.1 | 8.36 | 3560 | 253 | 6.04 | 5642 | 7.61 | 1479 | 176 | 3.89 | 28 | 70 | 150 |
| 200 | 28 | 18 | 9 | 105 | 82 | 5.99 | 14.1 | 8.47 | 3780 | 270 | 6.02 | 5990 | 7.57 | 1580 | 186 | 3.89 | 28 | 70/75 | 150 |
| 250 | 18 | 20 | 10 | 87.2 | 68.4 | 6.84 | 17.7 | 9.67 | 5213 | 287 | 7.73 | 8294 | 9.75 | 2132 | 220 | 4.95 | 28 | 70 | 200 |
| 250 | 20 | 20 | 10 | 96.4 | 75.7 | 6.92 | 17.7 | 9.79 | 5732 | 317 | 7.71 | 9118 | 9.73 | 2345 | 240 | 4.93 | 28 | 70 | 200 |
| 250 | 22 | 20 | 10 | 106 | 82.9 | 7 | 17.7 | 9.9 | 6237 | 347 | 7.69 | 9921 | 9.69 | 2554 | 257 | 4.92 | 28 | 70 | 200 |
| 250 | 24 | 20 | 10 | 115 | 90 | 7.08 | 17.7 | 10 | 6732 | 376 | 7.66 | 10703 | 9.66 | 2761 | 276 | 4.91 | 28 | 70 | 200 |
| 250 | 26 | 20 | 10 | 124 | 97.1 | 7.16 | 17.7 | 10.1 | 7214 | 404 | 7.64 | 11464 | 9.63 | 2965 | 293 | 4.9 | 28 | 75 | 200 |

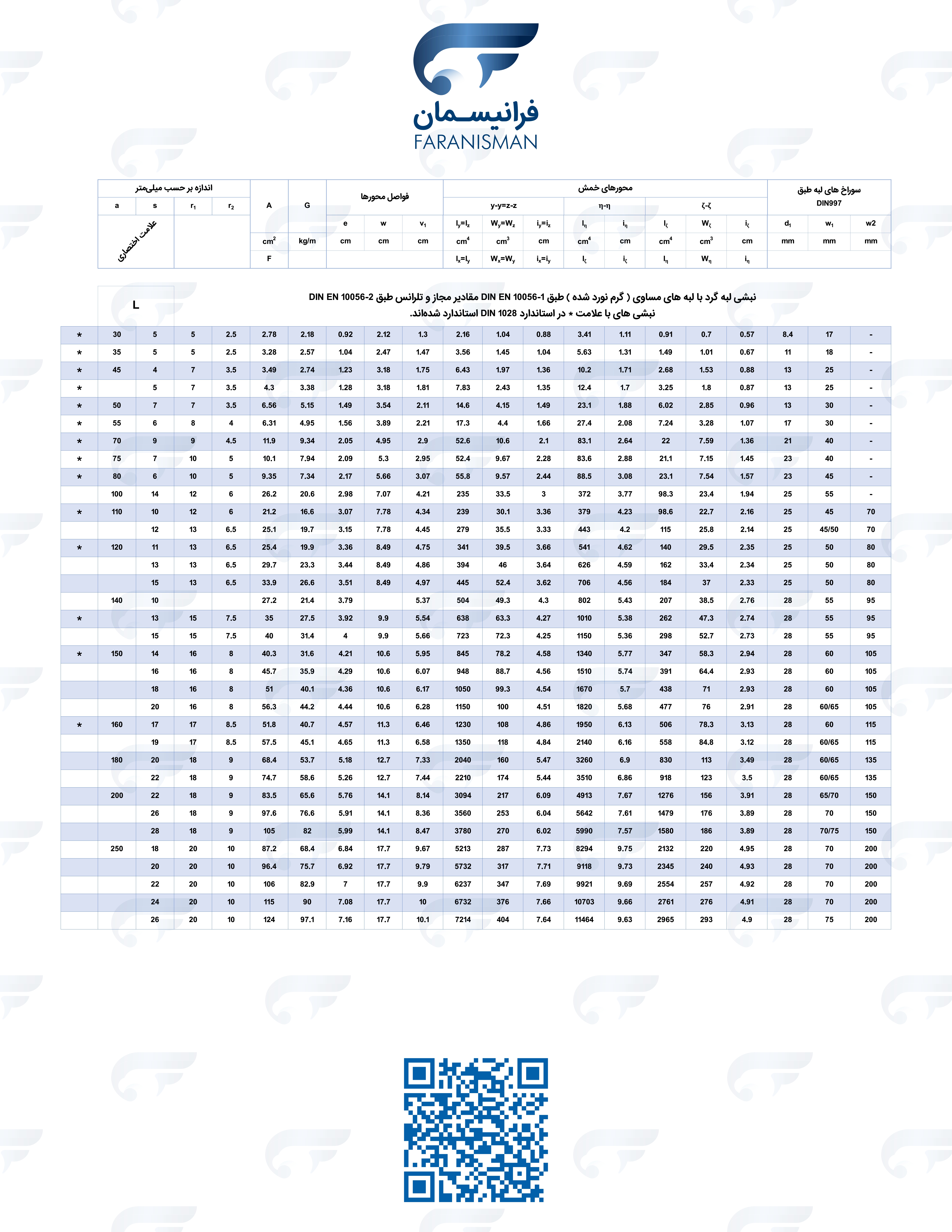

مشاهده تمام صفحه " جدول نبشی با لبه های مساوی و گرد استاندارد نشده "
