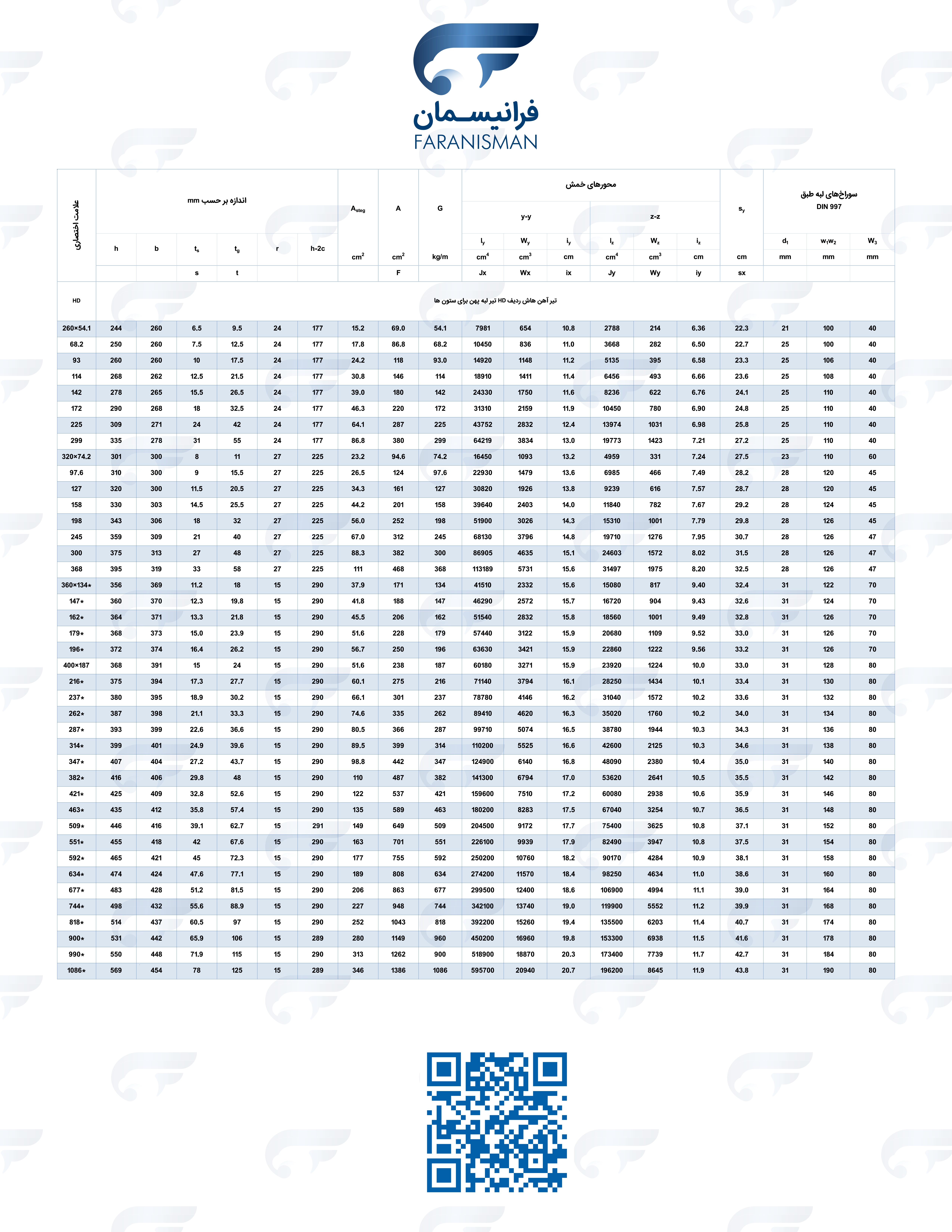

جدول تیر آهن هاش HD
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 19/فروردین/1404
زمان مطالعه: 4 دقیقه

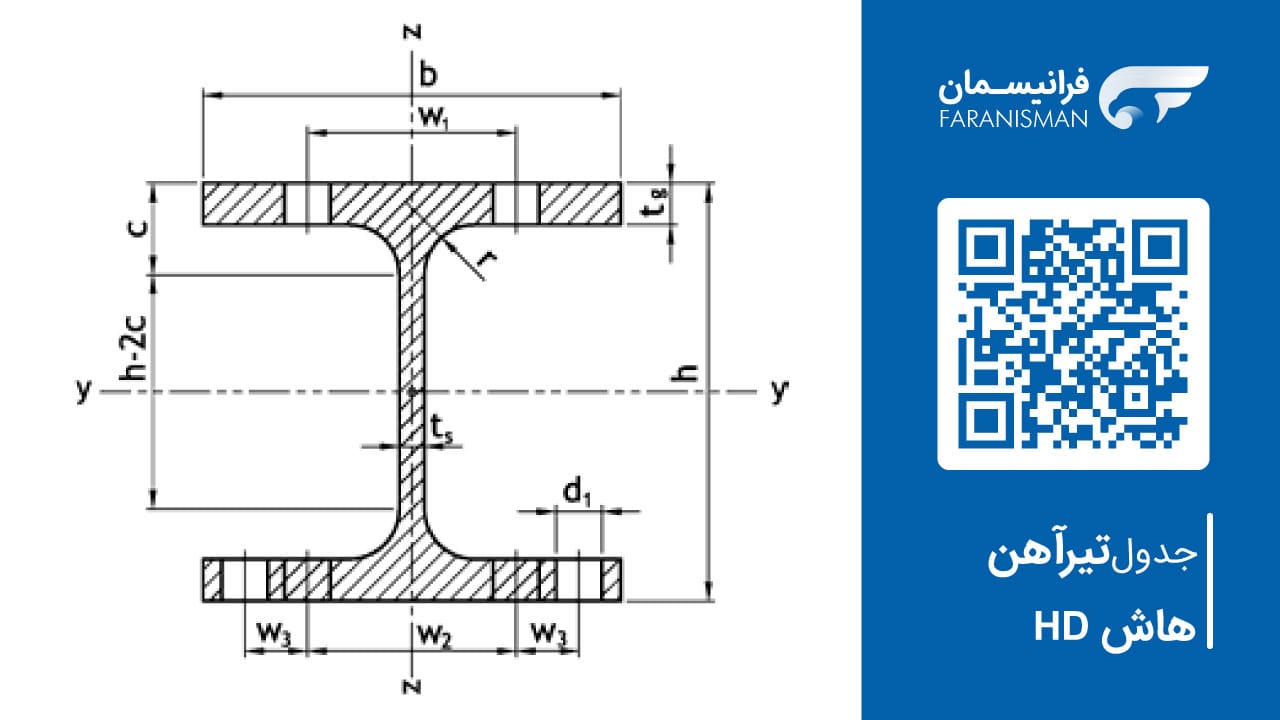

| HD | h | b | ts s | tg t | r | h-2c | Asteg cm2 | A cm2 | G kg/m | Iy cm4 | Wy cm3 | iy cm | Iz cm4 | wz cm3 | iz cm | Sy cm | d1 mm | w1w2 mm | W3 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260×54.1 | 244 | 260 | 6.5 | 9.5 | 24 | 177 | 15.2 | 69 | 54.1 | 7981 | 654 | 10.8 | 2788 | 214 | 6.36 | 22.3 | 21 | 100 | 40 |
| 68.2 | 250 | 260 | 7.5 | 12.5 | 24 | 177 | 17.8 | 86.8 | 68.2 | 10450 | 836 | 11 | 3668 | 282 | 6.5 | 22.7 | 25 | 100 | 40 |
| 93 | 260 | 260 | 10 | 17.5 | 24 | 177 | 24.2 | 118 | 93 | 14920 | 1148 | 11.2 | 5135 | 395 | 6.58 | 23.3 | 25 | 106 | 40 |
| 114 | 268 | 262 | 12.5 | 21.5 | 24 | 177 | 30.8 | 146 | 114 | 18910 | 1411 | 11.4 | 6456 | 493 | 6.66 | 23.6 | 25 | 108 | 40 |
| 142 | 278 | 265 | 15.5 | 26.5 | 24 | 177 | 39 | 180 | 142 | 24330 | 1750 | 11.6 | 8236 | 622 | 6.76 | 24.1 | 25 | 110 | 40 |
| 172 | 290 | 268 | 18 | 32.5 | 24 | 177 | 46.3 | 220 | 172 | 31310 | 2159 | 11.9 | 10450 | 780 | 6.9 | 24.8 | 25 | 110 | 40 |
| 225 | 309 | 271 | 24 | 42 | 24 | 177 | 64.1 | 287 | 225 | 43752 | 2832 | 12.4 | 13974 | 1031 | 6.98 | 25.8 | 25 | 110 | 40 |
| 299 | 335 | 278 | 31 | 55 | 24 | 177 | 86.8 | 380 | 299 | 64219 | 3834 | 13 | 19773 | 1423 | 7.21 | 27.2 | 25 | 110 | 40 |
| 320×74.2 | 301 | 300 | 8 | 11 | 27 | 225 | 23.2 | 94.6 | 74.2 | 16450 | 1093 | 13.2 | 4959 | 331 | 7.24 | 27.5 | 23 | 110 | 60 |
| 97.6 | 310 | 300 | 9 | 15.5 | 27 | 225 | 26.5 | 124 | 97.6 | 22930 | 1479 | 13.6 | 6985 | 466 | 7.49 | 28.2 | 28 | 120 | 45 |
| 127 | 320 | 300 | 11.5 | 20.5 | 27 | 225 | 34.3 | 161 | 127 | 30820 | 1926 | 13.8 | 9239 | 616 | 7.57 | 28.7 | 28 | 120 | 45 |
| 158 | 330 | 303 | 14.5 | 25.5 | 27 | 225 | 44.2 | 201 | 158 | 39640 | 2403 | 14 | 11840 | 782 | 7.67 | 29.2 | 28 | 124 | 45 |
| 198 | 343 | 306 | 18 | 32 | 27 | 225 | 56 | 252 | 198 | 51900 | 3026 | 14.3 | 15310 | 1001 | 7.79 | 29.8 | 28 | 126 | 45 |
| 245 | 359 | 309 | 21 | 40 | 27 | 225 | 67 | 312 | 245 | 68130 | 3796 | 14.8 | 19710 | 1276 | 7.95 | 30.7 | 28 | 126 | 47 |
| 300 | 375 | 313 | 27 | 48 | 27 | 225 | 88.3 | 382 | 300 | 86905 | 4635 | 15.1 | 24603 | 1572 | 8.02 | 31.5 | 28 | 126 | 47 |
| 368 | 395 | 319 | 33 | 58 | 27 | 225 | 111 | 468 | 368 | 113189 | 5731 | 15.6 | 31497 | 1975 | 8.2 | 32.5 | 28 | 126 | 47 |
| 360×134* | 356 | 369 | 11.2 | 18 | 15 | 290 | 37.9 | 171 | 134 | 41510 | 2332 | 15.6 | 15080 | 817 | 9.4 | 32.4 | 31 | 122 | 70 |
| 147* | 360 | 370 | 12.3 | 19.8 | 15 | 290 | 41.8 | 188 | 147 | 46290 | 2572 | 15.7 | 16720 | 904 | 9.43 | 32.6 | 31 | 124 | 70 |
| 162* | 364 | 371 | 13.3 | 21.8 | 15 | 290 | 45.5 | 206 | 162 | 51540 | 2832 | 15.8 | 18560 | 1001 | 9.49 | 32.8 | 31 | 126 | 70 |
| 179* | 368 | 373 | 15 | 23.9 | 15 | 290 | 51.6 | 228 | 179 | 57440 | 3122 | 15.9 | 20680 | 1109 | 9.52 | 33 | 31 | 126 | 70 |
| 196* | 372 | 374 | 16.4 | 26.2 | 15 | 290 | 56.7 | 250 | 196 | 63630 | 3421 | 15.9 | 22860 | 1222 | 9.56 | 33.2 | 31 | 126 | 70 |
| 400×187 | 368 | 391 | 15 | 24 | 15 | 290 | 51.6 | 238 | 187 | 60180 | 3271 | 15.9 | 23920 | 1224 | 10 | 33 | 31 | 128 | 80 |
| 216* | 375 | 394 | 17.3 | 27.7 | 15 | 290 | 60.1 | 275 | 216 | 71140 | 3794 | 16.1 | 28250 | 1434 | 10.1 | 33.4 | 31 | 130 | 80 |
| 237* | 380 | 395 | 18.9 | 30.2 | 15 | 290 | 66.1 | 301 | 237 | 78780 | 4146 | 16.2 | 31040 | 1572 | 10.2 | 33.6 | 31 | 132 | 80 |
| 262* | 387 | 398 | 21.1 | 33.3 | 15 | 290 | 74.6 | 335 | 262 | 89410 | 4620 | 16.3 | 35020 | 1760 | 10.2 | 34 | 31 | 134 | 80 |
| 287* | 393 | 399 | 22.6 | 36.6 | 15 | 290 | 80.5 | 366 | 287 | 99710 | 5074 | 16.5 | 38780 | 1944 | 10.3 | 34.3 | 31 | 136 | 80 |
| 314* | 399 | 401 | 24.9 | 39.6 | 15 | 290 | 89.5 | 399 | 314 | 110200 | 5525 | 16.6 | 42600 | 2125 | 10.3 | 34.6 | 31 | 138 | 80 |
| 347* | 407 | 404 | 27.2 | 43.7 | 15 | 290 | 98.8 | 442 | 347 | 124900 | 6140 | 16.8 | 48090 | 2380 | 10.4 | 35 | 31 | 140 | 80 |
| 382* | 416 | 406 | 29.8 | 48 | 15 | 290 | 110 | 487 | 382 | 141300 | 6794 | 17 | 53620 | 2641 | 10.5 | 35.5 | 31 | 142 | 80 |
| 421* | 425 | 409 | 32.8 | 52.6 | 15 | 290 | 122 | 537 | 421 | 159600 | 7510 | 17.2 | 60080 | 2938 | 10.6 | 35.9 | 31 | 146 | 80 |
| 463* | 435 | 412 | 35.8 | 57.4 | 15 | 290 | 135 | 589 | 463 | 180200 | 8283 | 17.5 | 67040 | 3254 | 10.7 | 36.5 | 31 | 148 | 80 |
| 509* | 446 | 416 | 39.1 | 62.7 | 15 | 291 | 149 | 649 | 509 | 204500 | 9172 | 17.7 | 75400 | 3625 | 10.8 | 37.1 | 31 | 152 | 80 |
| 551* | 455 | 418 | 42 | 67.6 | 15 | 290 | 163 | 701 | 551 | 226100 | 9939 | 17.9 | 82490 | 3947 | 10.8 | 37.5 | 31 | 154 | 80 |
| 592* | 465 | 421 | 45 | 72.3 | 15 | 290 | 177 | 755 | 592 | 250200 | 10760 | 18.2 | 90170 | 4284 | 10.9 | 38.1 | 31 | 158 | 80 |
| 634* | 474 | 424 | 47.6 | 77.1 | 15 | 290 | 189 | 808 | 634 | 274200 | 11570 | 18.4 | 98250 | 4634 | 11 | 38.6 | 31 | 160 | 80 |
| 677* | 483 | 428 | 51.2 | 81.5 | 15 | 290 | 206 | 863 | 677 | 299500 | 12400 | 18.6 | 106900 | 4994 | 11.1 | 39 | 31 | 164 | 80 |
| 744* | 498 | 432 | 55.6 | 88.9 | 15 | 290 | 227 | 948 | 744 | 342100 | 13740 | 19 | 119900 | 5552 | 11.2 | 39.9 | 31 | 168 | 80 |
| 818* | 514 | 437 | 60.5 | 97 | 15 | 290 | 252 | 1043 | 818 | 392200 | 15260 | 19.4 | 135500 | 6203 | 11.4 | 40.7 | 31 | 174 | 80 |
| 900* | 531 | 442 | 65.9 | 106 | 15 | 289 | 280 | 1149 | 960 | 450200 | 16960 | 19.8 | 153300 | 6938 | 11.5 | 41.6 | 31 | 178 | 80 |
| 990* | 550 | 448 | 71.9 | 115 | 15 | 290 | 313 | 1262 | 900 | 518900 | 18870 | 20.3 | 173400 | 7739 | 11.7 | 42.7 | 31 | 184 | 80 |
| 1086* | 569 | 454 | 78 | 125 | 15 | 289 | 346 | 1386 | 1086 | 595700 | 20940 | 20.7 | 196200 | 8645 | 11.9 | 43.8 | 31 | 190 | 80 |
