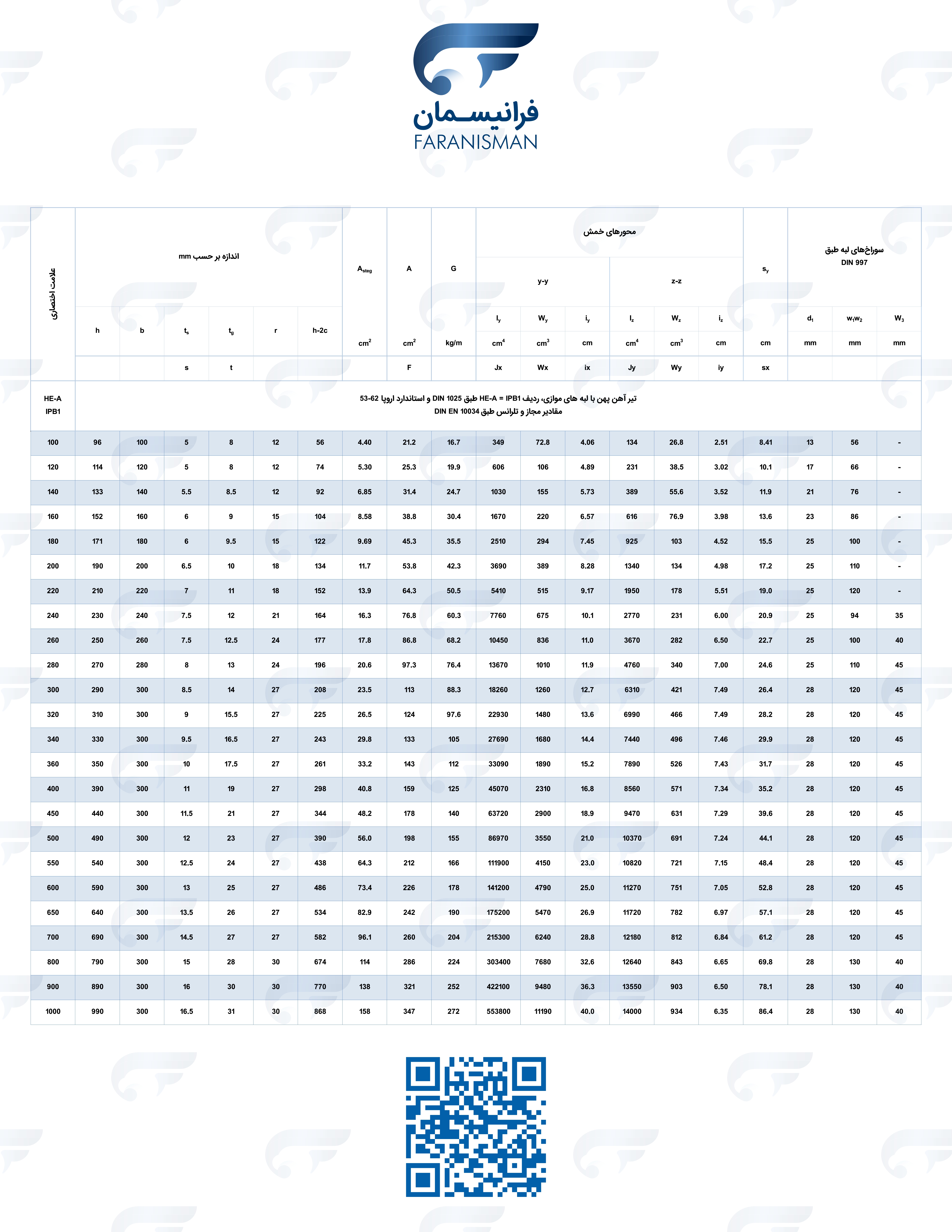

جدول تیر آهن هاش پهن HE-A
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 16/فروردین/1404
زمان مطالعه: 4 دقیقه

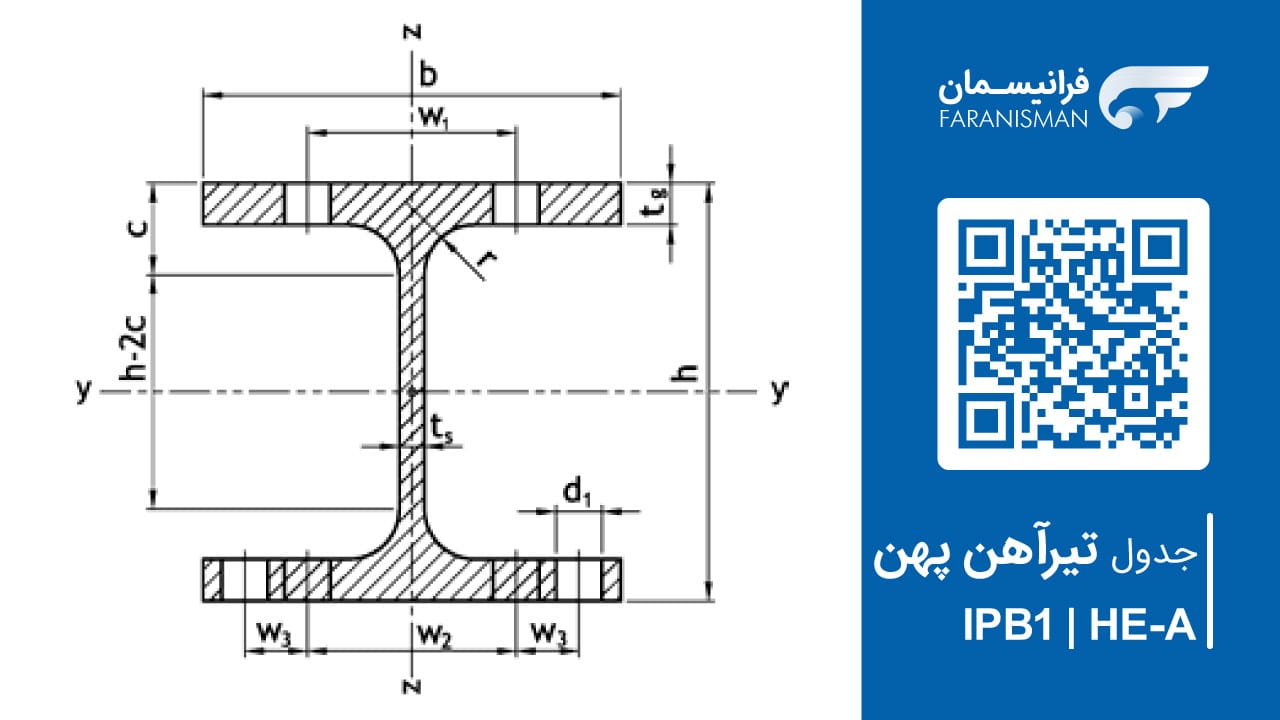

| HE-A | h | b | ts s | tg s2 | r | h-2c | Asteg cm2 | A cm2 | G kg/m | Iy cm4 | Wy cm3 | iy cm | Iz cm4 | wz cm3 | iz cm | Sy cm | d1 mm | w1w2 mm | W3 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 96 | 100 | 5 | 8 | 12 | 56 | 4.4 | 21.2 | 16.7 | 349 | 72.8 | 4.06 | 134 | 26.8 | 2.51 | 8.41 | 13 | 56 | - |
| 120 | 114 | 120 | 5 | 8 | 12 | 74 | 5.3 | 25.3 | 19.9 | 606 | 106 | 4.89 | 231 | 38.5 | 3.02 | 10.1 | 17 | 66 | - |
| 140 | 133 | 140 | 5.5 | 8.5 | 12 | 92 | 6.85 | 31.4 | 24.7 | 1030 | 155 | 5.73 | 389 | 55.6 | 3.52 | 11.9 | 21 | 76 | - |
| 160 | 152 | 160 | 6 | 9 | 15 | 104 | 8.58 | 38.8 | 30.4 | 1670 | 220 | 6.57 | 616 | 76.9 | 3.98 | 13.6 | 23 | 86 | - |
| 180 | 171 | 180 | 6 | 9.5 | 15 | 122 | 9.69 | 45.3 | 35.5 | 2510 | 294 | 7.45 | 925 | 103 | 4.52 | 15.5 | 25 | 100 | - |
| 200 | 190 | 200 | 6.5 | 10 | 18 | 134 | 11.7 | 53.8 | 42.3 | 3690 | 389 | 8.28 | 1340 | 134 | 4.98 | 17.2 | 25 | 110 | - |
| 220 | 210 | 220 | 7 | 11 | 18 | 152 | 13.9 | 64.3 | 50.5 | 5410 | 515 | 9.17 | 1950 | 178 | 5.51 | 19 | 25 | 120 | - |
| 240 | 230 | 240 | 7.5 | 12 | 21 | 164 | 16.3 | 76.8 | 60.3 | 7760 | 675 | 10.1 | 2770 | 231 | 6 | 20.9 | 25 | 94 | 35 |
| 260 | 250 | 260 | 7.5 | 12.5 | 24 | 177 | 17.8 | 86.8 | 68.2 | 10450 | 836 | 11 | 3670 | 282 | 6.5 | 22.7 | 25 | 100 | 40 |
| 280 | 270 | 280 | 8 | 13 | 24 | 196 | 20.6 | 97.3 | 76.4 | 13670 | 1010 | 11.9 | 4760 | 340 | 7 | 24.6 | 25 | 110 | 45 |
| 300 | 290 | 300 | 8.5 | 14 | 27 | 208 | 23.5 | 113 | 88.3 | 18260 | 1260 | 12.7 | 6310 | 421 | 7.49 | 26.4 | 28 | 120 | 45 |
| 320 | 310 | 300 | 9 | 15.5 | 27 | 225 | 26.5 | 124 | 97.6 | 22930 | 1480 | 13.6 | 6990 | 466 | 7.49 | 28.2 | 28 | 120 | 45 |
| 340 | 330 | 300 | 9.5 | 16.5 | 27 | 243 | 29.8 | 133 | 105 | 27690 | 1680 | 14.4 | 7440 | 496 | 7.46 | 29.9 | 28 | 120 | 45 |
| 360 | 350 | 300 | 10 | 17.5 | 27 | 261 | 33.2 | 143 | 112 | 33090 | 1890 | 15.2 | 7890 | 526 | 7.43 | 31.7 | 28 | 120 | 45 |
| 400 | 390 | 300 | 11 | 19 | 27 | 298 | 40.8 | 159 | 125 | 45070 | 2310 | 16.8 | 8560 | 571 | 7.34 | 35.2 | 28 | 120 | 45 |
| 450 | 440 | 300 | 11.5 | 21 | 27 | 344 | 48.2 | 178 | 140 | 63720 | 2900 | 18.9 | 9470 | 631 | 7.29 | 39.6 | 28 | 120 | 45 |
| 500 | 490 | 300 | 12 | 23 | 27 | 390 | 56 | 198 | 155 | 86970 | 3550 | 21 | 10370 | 691 | 7.24 | 44.1 | 28 | 120 | 45 |
| 550 | 540 | 300 | 12.5 | 24 | 27 | 438 | 64.3 | 212 | 166 | 111900 | 4150 | 23 | 10820 | 721 | 7.15 | 48.4 | 28 | 120 | 45 |
| 600 | 590 | 300 | 13 | 25 | 27 | 486 | 73.4 | 226 | 178 | 141200 | 4790 | 25 | 11270 | 751 | 7.05 | 52.8 | 28 | 120 | 45 |
| 650 | 640 | 300 | 13.5 | 26 | 27 | 534 | 82.9 | 242 | 190 | 175200 | 5470 | 26.9 | 11720 | 782 | 6.97 | 57.1 | 28 | 120 | 45 |
| 700 | 690 | 300 | 14.5 | 27 | 27 | 582 | 96.1 | 260 | 204 | 215300 | 6240 | 28.8 | 12180 | 812 | 6.84 | 61.2 | 28 | 120 | 45 |
| 800 | 790 | 300 | 15 | 28 | 30 | 674 | 114 | 286 | 224 | 303400 | 7680 | 32.6 | 12640 | 843 | 6.65 | 69.8 | 28 | 130 | 40 |
| 900 | 890 | 300 | 16 | 30 | 30 | 770 | 138 | 321 | 252 | 422100 | 9480 | 36.3 | 13550 | 903 | 6.5 | 78.1 | 28 | 130 | 40 |
| 1000 | 990 | 300 | 16.5 | 31 | 30 | 868 | 158 | 347 | 272 | 553800 | 11190 | 40 | 14000 | 934 | 6.35 | 86.4 | 28 | 130 | 40 |
مشاهده تمام صفحه " جدول تیر آهن هاش پهن HE-A "
