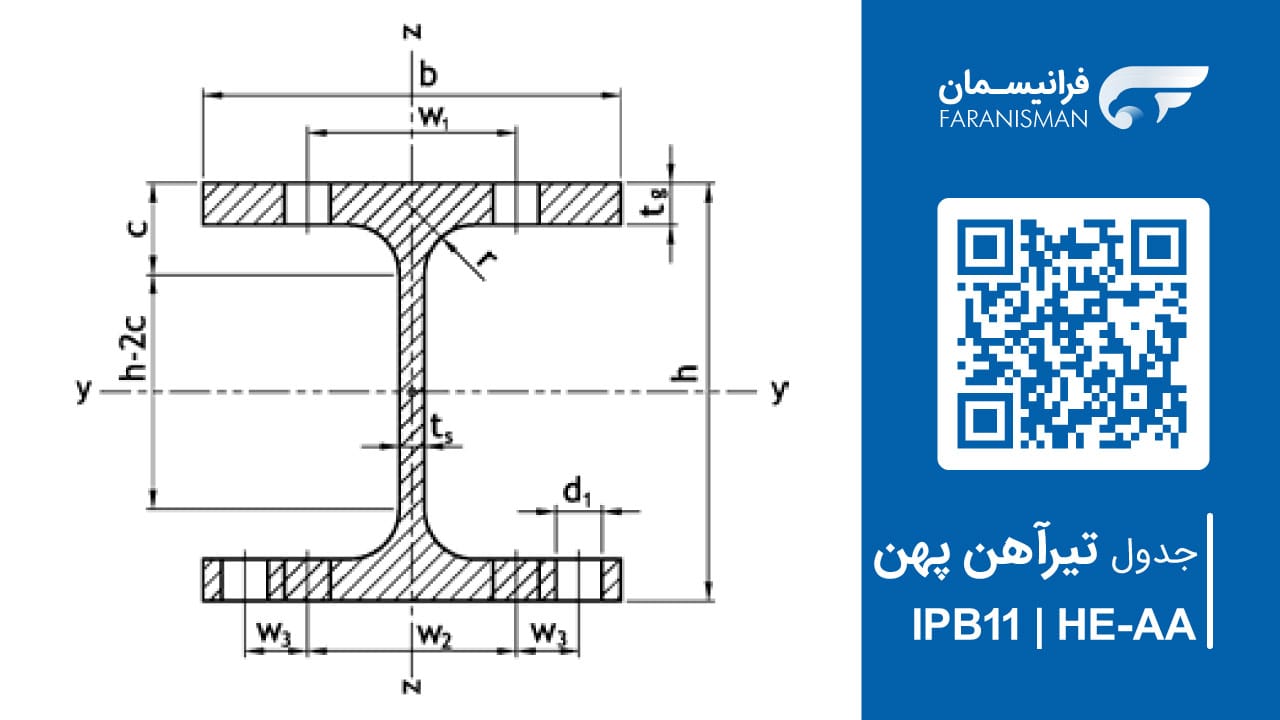

جدول تیر آهن پهن HE-AA
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 19/فروردین/1404
زمان مطالعه: 4 دقیقه
| HE-AA IPB11 | h | b | ts s | tg t | r | h-2c | Asteg cm2 | A cm2 | G kg/m | Iy cm4 | Wy cm3 | iy cm | Iz cm4 | wz cm3 | iz cm | Sy cm | d1 mm | w1w2 mm | W3 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 91 | 100 | 4.2 | 5.5 | 12 | 56 | 3.6 | 15.6 | 12.2 | 237 | 52 | 3.89 | 92.1 | 18.4 | 2.43 | 8.11 | 13 | 60 | - |
| 120 | 109 | 120 | 4.2 | 5.5 | 12 | 74 | 4.35 | 18.6 | 14.6 | 413 | 75.8 | 4.72 | 159 | 26.5 | 2.93 | 9.83 | 17 | 69 | - |
| 140 | 128 | 140 | 4.3 | 6 | 12 | 92 | 5.25 | 23 | 18.1 | 719 | 112 | 5.59 | 275 | 39.3 | 3.45 | 11.6 | 21 | 75 | - |
| 160 | 148 | 160 | 4.5 | 7 | 15 | 104 | 6.34 | 30.4 | 23.8 | 1283 | 173 | 6.5 | 479 | 59.8 | 3.97 | 13.5 | 23 | 88 | - |
| 180 | 167 | 180 | 5 | 7.5 | 15 | 122 | 7.97 | 36.5 | 28.7 | 1967 | 236 | 7.34 | 730 | 81.1 | 4.47 | 15.2 | 25 | 105 | - |
| 200 | 186 | 200 | 5.5 | 8 | 18 | 134 | 9.79 | 44.1 | 34.6 | 2944 | 317 | 8.17 | 1068 | 107 | 4.92 | 17 | 25 | 115 | - |
| 220 | 205 | 220 | 6 | 8.5 | 18 | 152 | 11.8 | 51.5 | 40.4 | 4170 | 407 | 9 | 1510 | 137 | 5.42 | 18.7 | 25 | 125 | - |
| 240 | 224 | 240 | 6.5 | 9 | 21 | 164 | 14 | 60.4 | 47.4 | 5835 | 521 | 9.83 | 2077 | 173 | 5.87 | 20.5 | 25 | 93 | 35 |
| 260 | 244 | 260 | 6.5 | 9.5 | 24 | 177 | 15.2 | 69 | 54.1 | 7981 | 654 | 10.8 | 2788 | 214 | 6.38 | 22.3 | 25 | 99 | 40 |
| 280 | 264 | 280 | 7 | 10 | 24 | 196 | 17.8 | 78 | 61.2 | 10560 | 800 | 11.6 | 3664 | 262 | 6.85 | 24.2 | 25 | 99 | 50 |
| 300 | 283 | 300 | 7.5 | 10.5 | 27 | 208 | 20.4 | 88.9 | 69.8 | 13800 | 976 | 12.5 | 4734 | 316 | 7.3 | 25.9 | 28 | 112 | 50 |
| 320 | 301 | 300 | 8 | 11 | 27 | 225 | 23.2 | 94.6 | 74.2 | 16450 | 1093 | 13.2 | 4959 | 331 | 7.24 | 27.5 | 28 | 112 | 50 |
| 340 | 320 | 300 | 8.5 | 11.5 | 27 | 243 | 26.2 | 101 | 78.9 | 19550 | 1222 | 13.9 | 5185 | 346 | 7.18 | 29.1 | 28 | 113 | 50 |
| 360 | 339 | 300 | 9 | 12 | 27 | 261 | 29.4 | 107 | 83.7 | 23040 | 1359 | 14.7 | 5410 | 361 | 7.12 | 30.8 | 28 | 113 | 50 |
| 400 | 378 | 300 | 9.5 | 13 | 27 | 298 | 34.7 | 118 | 92.4 | 31250 | 1654 | 16.3 | 5861 | 391 | 7.06 | 34.3 | 28 | 114 | 50 |
| 450 | 425 | 300 | 10 | 13.5 | 27 | 344 | 41.1 | 127 | 99.7 | 41890 | 1971 | 18.2 | 6088 | 406 | 6.92 | 38.4 | 28 | 114 | 50 |
| 500 | 472 | 300 | 10.5 | 14 | 27 | 390 | 48.1 | 137 | 107 | 54640 | 2315 | 20 | 6314 | 421 | 6.79 | 42.4 | 28 | 115 | 50 |
| 550 | 522 | 300 | 11.5 | 15 | 27 | 438 | 58.3 | 153 | 120 | 72870 | 2792 | 21.8 | 6767 | 451 | 6.65 | 46.6 | 28 | 116 | 50 |
| 600 | 571 | 300 | 12 | 15.5 | 27 | 486 | 66.7 | 164 | 129 | 91870 | 3218 | 23.7 | 6993 | 466 | 6.53 | 50.7 | 28 | 116 | 50 |
| 650 | 620 | 300 | 12.5 | 16 | 27 | 534 | 75.5 | 176 | 138 | 113900 | 3676 | 25.5 | 7221 | 481 | 6.41 | 54.8 | 28 | 117 | 49 |
| 700 | 670 | 300 | 13 | 17 | 27 | 582 | 84.9 | 191 | 150 | 142700 | 4260 | 27.3 | 7673 | 512 | 6.34 | 59 | 28 | 117 | 49 |
| 800 | 770 | 300 | 14 | 18 | 30 | 674 | 105 | 218 | 172 | 208900 | 5426 | 30.9 | 8134 | 542 | 6.1 | 67.1 | 28 | 124 | 46 |
| 900 | 870 | 300 | 15 | 20 | 30 | 770 | 127 | 252 | 198 | 301100 | 6923 | 34.6 | 9041 | 603 | 5.99 | 75.3 | 28 | 125 | 45 |
| 1000 | 970 | 300 | 16 | 21 | 30 | 868 | 152 | 282 | 222 | 406500 | 8380 | 38 | 9501 | 633 | 5.8 | 83.2 | 28 | 126 | 45 |

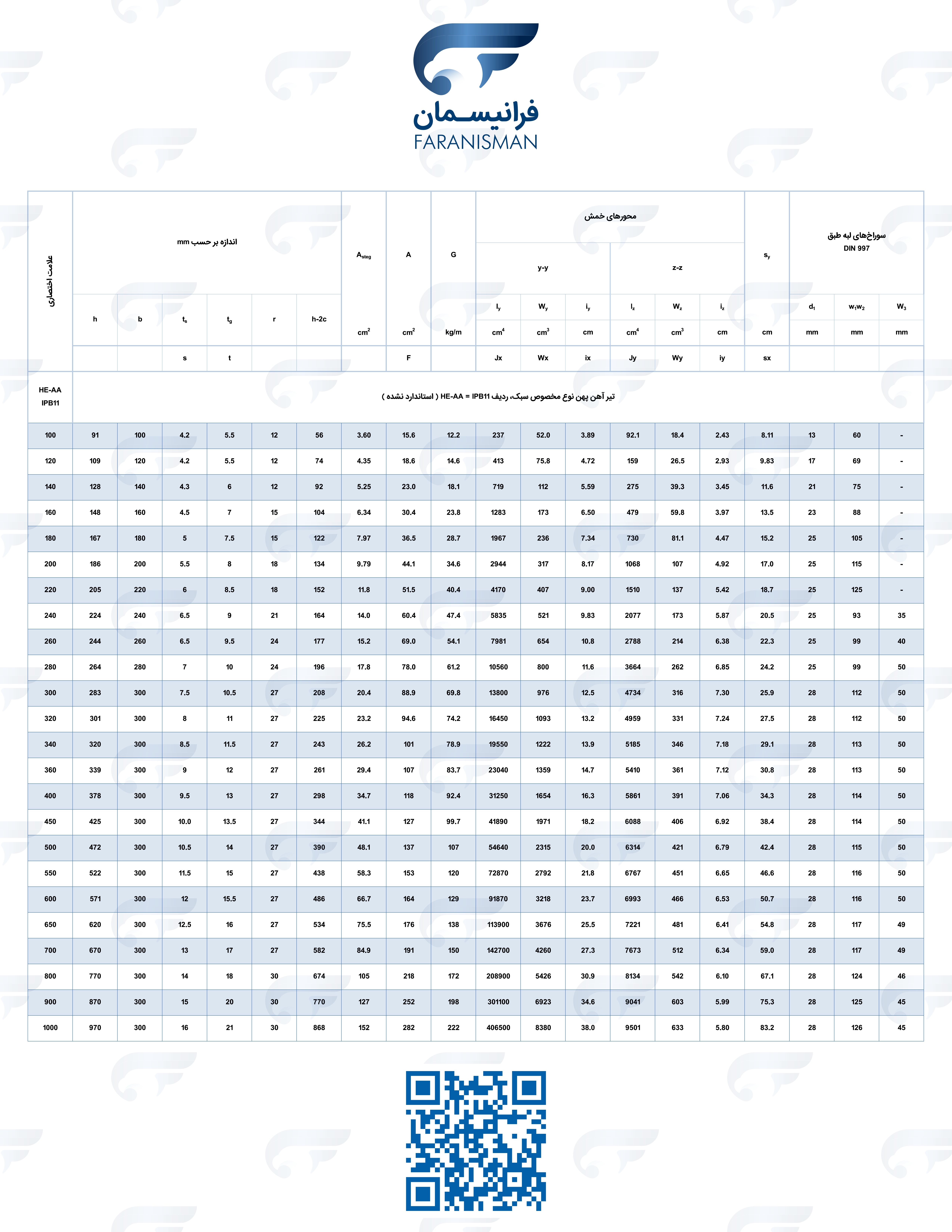

مشاهده تمام صفحه " جدول تیر آهن پهن HE-AA "
