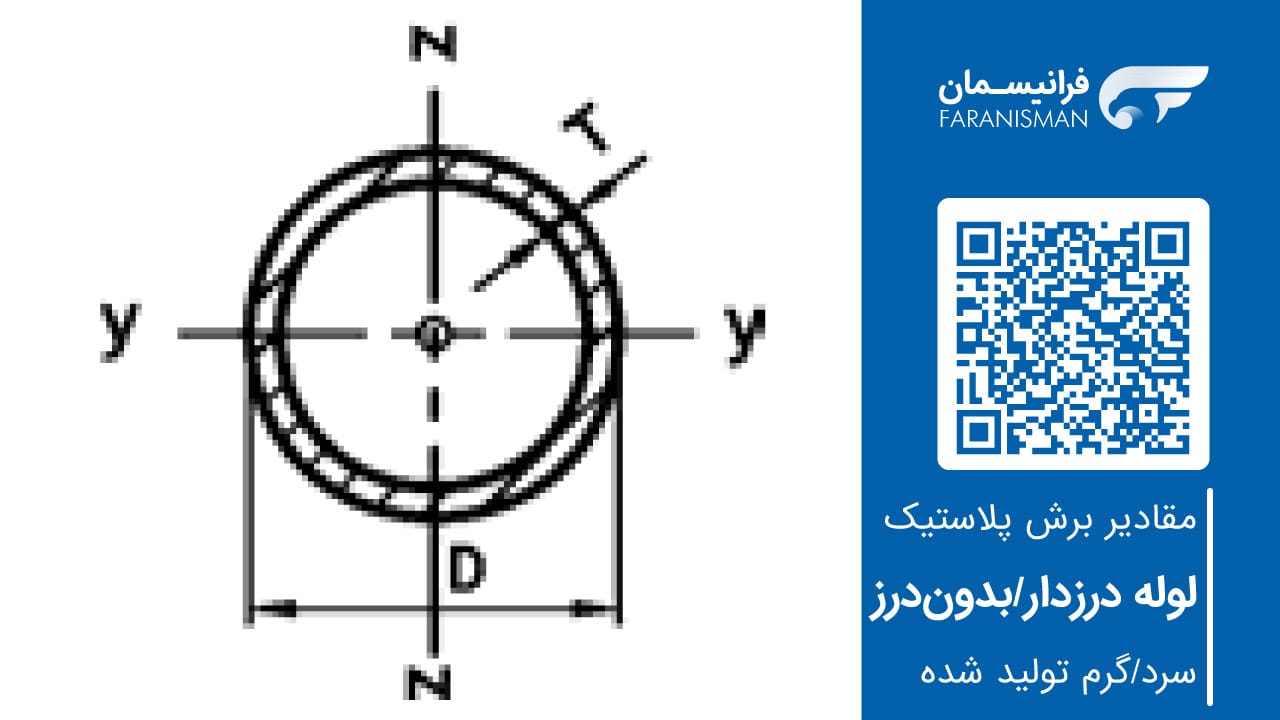

مقادیر برش پلاستیک لوله درزدار/بدون درز – سرد/گرم تولید شده
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 23/فروردین/1404
زمان مطالعه: 4 دقیقه
| OD mm | T mm | Mpl kNm | Wpl cm3 | IT cm4 | Ct cm3 |
|---|---|---|---|---|---|
| 33.7 | 2.6 | 0.6 | 2.52 | 6.19 | 3.67 |
| 33.7 | 3.2 | 0.72 | 2.99 | 7.21 | 4.28 |
| 33.7 | 4 | 0.85 | 3.55 | 8.38 | 4.97 |
| 42.4 | 2.6 | 0.99 | 4.12 | 12.9 | 6.1 |
| 42.4 | 3.2 | 1.18 | 4.93 | 15.2 | 7.19 |
| 42.4 | 4 | 1.42 | 5.92 | 18 | 8.48 |
| 48.3 | 2.6 | 1.31 | 5.44 | 19.6 | 8.1 |
| 48.3 | 3.2 | 1.56 | 6.52 | 23.2 | 9.59 |
| 48.3 | 4 | 1.89 | 7.87 | 27.5 | 11.4 |
| 60.3 | 3.2 | 2.5 | 10.4 | 46.9 | 15.6 |
| 60.3 | 4 | 3.05 | 12.7 | 56.3 | 18.7 |
| 60.3 | 5 | 3.67 | 15.3 | 67 | 22.2 |
| 76.1 | 3.2 | 4.08 | 17 | 97.6 | 25.6 |
| 76.1 | 4 | 4.99 | 20.8 | 118 | 31 |
| 76.1 | 5 | 6.07 | 25.3 | 142 | 37.3 |
| 88.9 | 3.2 | 5.64 | 23.5 | 158 | 35.6 |
| 88.9 | 4 | 6.94 | 28.9 | 193 | 43.3 |
| 88.9 | 5 | 8.45 | 35.2 | 233 | 52.4 |
| 88.9 | 6 | 9.91 | 41.3 | 270 | 60.7 |
| 88.9 | 6.3 | 10.3 | 43.1 | 280 | 63.1 |
| 101.6 | 4 | 9.14 | 38.1 | 293 | 57.6 |
| 101.6 | 5 | 11.2 | 46.7 | 355 | 69.9 |
| 101.6 | 6.3 | 13.8 | 57.3 | 430 | 84.7 |
| 114.3 | 4 | 11.7 | 48.7 | 422 | 73.9 |
| 114.3 | 5 | 14.4 | 59.8 | 514 | 89.9 |
| 114.3 | 6.3 | 17.7 | 73.6 | 625 | 109 |
| 114.3 | 8 | 21.7 | 90.6 | 759 | 133 |
| 139.7 | 4 | 17.7 | 73.7 | 786 | 112 |
| 139.7 | 5 | 21.8 | 90.8 | 961 | 138 |
| 139.7 | 6.3 | 26.9 | 112 | 1177 | 169 |
| 139.7 | 8 | 33.4 | 139 | 1441 | 206 |
| 139.7 | 12.5 | 48.7 | 203 | 2040 | 292 |
| 168.3 | 5 | 31.9 | 133 | 1712 | 203 |
| 168.3 | 6.3 | 39.6 | 165 | 2107 | 250 |
| 168.3 | 8 | 49.4 | 206 | 2595 | 308 |
| 168.3 | 10 | 60.2 | 251 | 3128 | 372 |
| 168.3 | 12.5 | 73 | 304 | 3737 | 444 |
| 177.8 | 6.3 | 44.4 | 185 | 2499 | 281 |
| 177.8 | 8 | 55.4 | 231 | 3083 | 347 |
| 177.8 | 10 | 67.7 | 282 | 3724 | 419 |
| 177.8 | 12.5 | 82.1 | 342 | 4460 | 502 |
| 193.7 | 6.3 | 53 | 221 | 3260 | 337 |
| 193.7 | 8 | 66.2 | 276 | 4031 | 416 |
| 193.7 | 10 | 81.1 | 338 | 4883 | 504 |
| 193.7 | 16 | 122 | 507 | 7109 | 734 |
| 219.1 | 6.3 | 68.4 | 285 | 4772 | 436 |
| 219.1 | 8 | 85.7 | 357 | 5919 | 540 |
| 219.1 | 10 | 438 | 105 | 7197 | 657 |
| 219.1 | 16 | 159 | 661 | 10593 | 967 |
| 219.1 | 20 | 191 | 795 | 12523 | 1143 |
| 244.5 | 6.3 | 85.9 | 358 | 6692 | 547 |
| 244.5 | 8 | 108 | 448 | 8321 | 681 |
| 244.5 | 10 | 132 | 550 | 10146 | 830 |
| 244.5 | 12.5 | 162 | 673 | 12295 | 1006 |
| 244.5 | 16 | 201 | 837 | 15066 | 1232 |
| 244.5 | 20 | 243 | 1011 | 17914 | 1465 |
| 244.5 | 25 | 290 | 1210 | 21034 | 1721 |
| 273 | 6.3 | 108 | 448 | 9392 | 688 |
| 273 | 8 | 135 | 562 | 11703 | 857 |
| 273 | 10 | 166 | 692 | 14308 | 1048 |
| 273 | 12.5 | 204 | 849 | 17395 | 1274 |
| 273 | 16 | 254 | 1058 | 21414 | 1569 |
| 273 | 20 | 308 | 1283 | 25597 | 1875 |
| 273 | 25 | 370 | 1543 | 30234 | 2216 |
| 323.9 | 8 | 192 | 799 | 19820 | 1224 |
| 323.9 | 10 | 237 | 986 | 24317 | 1501 |
| 323.9 | 12.5 | 291 | 1213 | 29693 | 1833 |
| 323.9 | 16 | 364 | 1518 | 36780 | 2271 |
| 323.9 | 20 | 444 | 1850 | 44278 | 2734 |
| 323.9 | 25 | 537 | 2239 | 52800 | 3260 |
| 355.6 | 8 | 232 | 967 | 26403 | 1485 |
| 355.6 | 10 | 287 | 1195 | 32447 | 1825 |
| 355.6 | 12.5 | 353 | 1472 | 39704 | 2233 |
| 355.6 | 16 | 443 | 1847 | 49326 | 2774 |
| 355.6 | 20 | 541 | 2255 | 59583 | 3351 |
| 355.6 | 25 | 657 | 2738 | 71353 | 4013 |
| 406.4 | 10 | 377 | 1572 | 48952 | 2409 |
| 406.4 | 12.5 | 466 | 1940 | 60061 | 2956 |
| 406.4 | 16 | 586 | 2440 | 74898 | 3686 |
| 406.4 | 20 | 717 | 2989 | 90864 | 4472 |
| 406.4 | 25 | 874 | 3842 | 109404 | 5384 |
| 406.4 | 30 | 1022 | 4259 | 126447 | 6223 |
| 406.4 | 40 | 1294 | 5391 | 156373 | 7696 |
| 457 | 10 | 480 | 1998 | 70183 | 3071 |
| 457 | 12.5 | 593 | 2470 | 86290 | 3776 |
| 457 | 16 | 747 | 3113 | 107919 | 4723 |
| 457 | 20 | 917 | 3822 | 131363 | 5749 |
| 457 | 25 | 1121 | 4671 | 158830 | 6951 |
| 457 | 30 | 1315 | 5479 | 184346 | 8068 |
| 457 | 40 | 1674 | 6977 | 229898 | 10061 |
| 457 | 50 | 1790 | 8324 | 268750 | 11761 |
| 508 | 10 | 595 | 2480 | 97040 | 3820 |
| 508 | 12.5 | 737 | 3070 | 119511 | 4705 |
| 508 | 16 | 930 | 3874 | 149818 | 5898 |
| 508 | 20 | 1144 | 4766 | 182856 | 7199 |
| 508 | 25 | 1401 | 5837 | 221837 | 8734 |
| 508 | 30 | 1647 | 6864 | 258346 | 10171 |
| 508 | 40 | 2108 | 8782 | 324376 | 12771 |
| 508 | 50 | 2264 | 10530 | 381770 | 15030 |
| 610 | 10 | 864 | 3600 | 169693 | 5564 |
| 610 | 12.5 | 1071 | 4463 | 209509 | 6869 |
| 610 | 16 | 1355 | 5647 | 263563 | 8641 |
| 610 | 20 | 1672 | 6965 | 322979 | 10589 |
| 610 | 25 | 2055 | 8561 | 393813 | 12912 |
| 610 | 30 | 2424 | 10101 | 460952 | 15113 |
| 610 | 40 | 2124 | 13017 | 584666 | 19169 |
| 610 | 50 | 3380 | 15722 | 695140 | 22791 |
| 711 | 10 | 1179 | 4914 | 270603 | 7612 |
| 711 | 20 | 2292 | 9552 | 518702 | 14591 |
| 711 | 25 | 2825 | 11770 | 634715 | 1785 |
| 711 | 30 | 3341 | 13922 | 745580 | 20973 |
| 711 | 40 | 4327 | 18031 | 952485 | 26793 |
| 711 | 50 | 4706 | 21888 | 1140623 | 32085 |
| 711 | 60 | 5483 | 25500 | 1311166 | 36882 |
| 762 | 10 | 1357 | 5655 | 334057 | 8768 |
| 762 | 16 | 2137 | 8906 | 521947 | 13699 |
| 762 | 20 | 2643 | 11014 | 642166 | 16855 |
| 762 | 25 | 3260 | 13584 | 786922 | 20654 |
| 762 | 30 | 3860 | 16084 | 925706 | 24297 |
| 762 | 40 | 5010 | 20873 | 1186021 | 31129 |
| 762 | 50 | 5459 | 25389 | 1424414 | 37386 |
| 813 | 10 | 1548 | 6448 | 406728 | 10006 |
| 813 | 16 | 2440 | 10165 | 636443 | 15657 |
| 813 | 20 | 3019 | 12580 | 783819 | 19282 |
| 813 | 25 | 3727 | 15529 | 961713 | 23658 |
| 813 | 30 | 4416 | 18402 | 1132748 | 27866 |
| 914 | 10 | 1961 | 8172 | 580294 | 12698 |
| 914 | 16 | 3097 | 12904 | 910284 | 19919 |
| 914 | 25 | 4743 | 19763 | 1380634 | 30211 |
| 914 | 30 | 5629 | 23453 | 1629550 | 35658 |
| 1016 | 10 | 2429 | 10121 | 799699 | 15742 |
| 1016 | 16 | 3840 | 16001 | 1256959 | 24743 |
| 1016 | 25 | 5894 | 24557 | 1912173 | 37641 |
| 1016 | 30 | 7002 | 29175 | 2260704 | 44502 |
| 1067 | 10 | 2682 | 11173 | 927585 | 17387 |
| 1067 | 16 | 4242 | 17675 | 1459213 | 27352 |
| 1067 | 25 | 6516 | 27149 | 2222711 | 41663 |
| 1067 | 30 | 7745 | 32270 | 2629727 | 49292 |
| 1168 | 10 | 3218 | 13410 | 1219686 | 20885 |
| 1168 | 16 | 5096 | 21235 | 1921547 | 32903 |
| 1168 | 25 | 7840 | 32666 | 2933434 | 50230 |
| 1219 | 10 | 3508 | 14617 | 1388029 | 22773 |
| 1219 | 16 | 5558 | 23157 | 2188123 | 35901 |
| 1219 | 25 | 8555 | 35646 | 3343746 | 54860 |

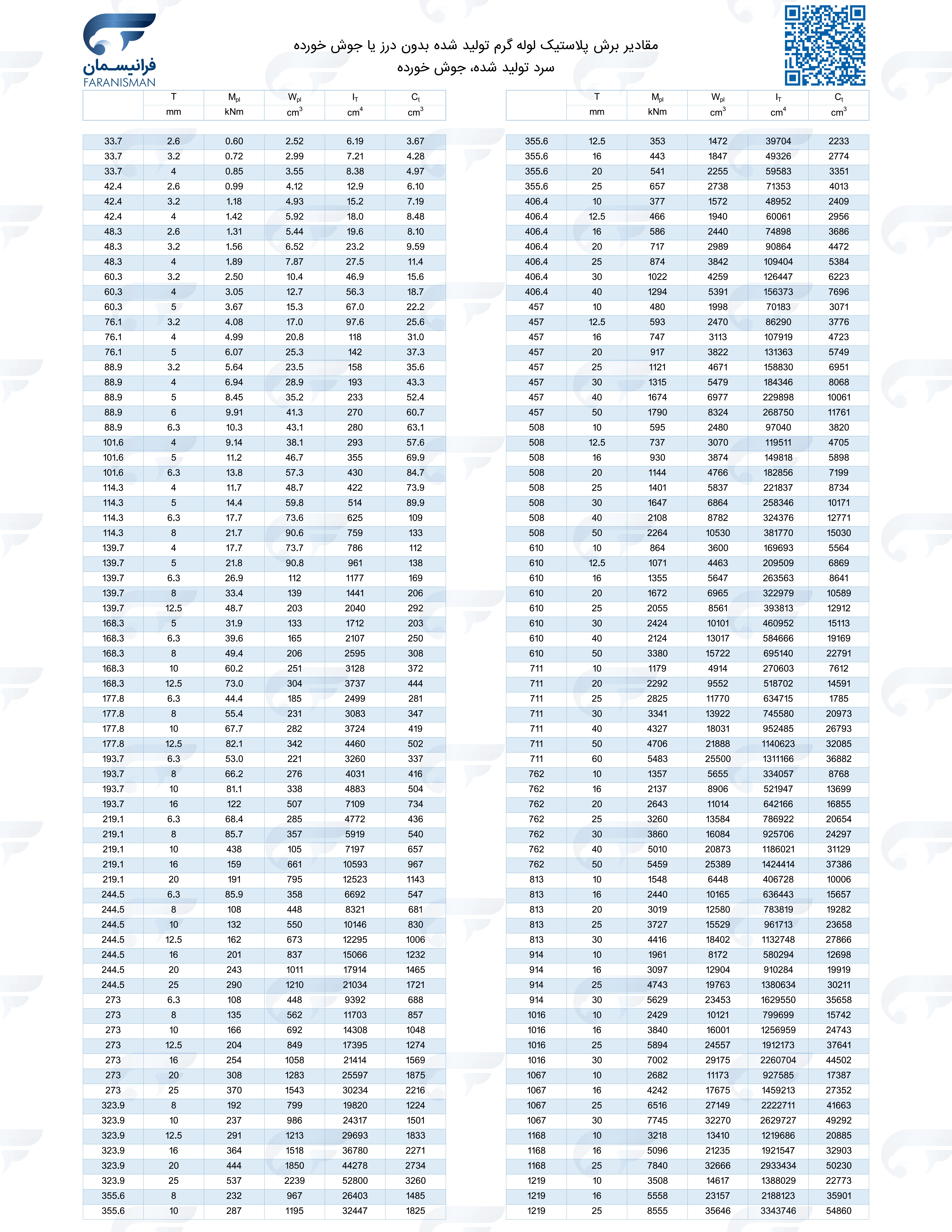

مشاهده تمام صفحه " مقادیر برش پلاستیک لوله درزدار/بدون درز - سرد/گرم تولید شده "
