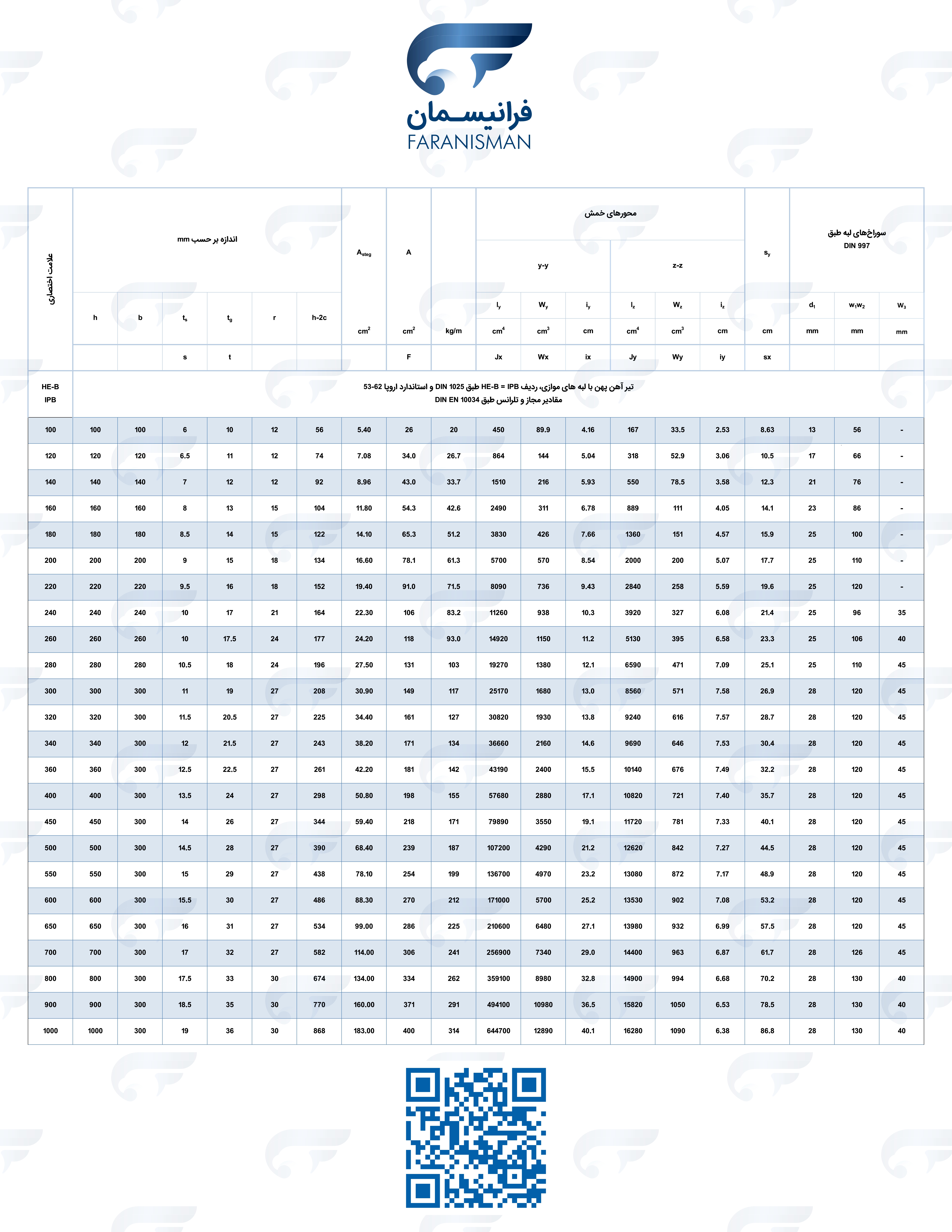

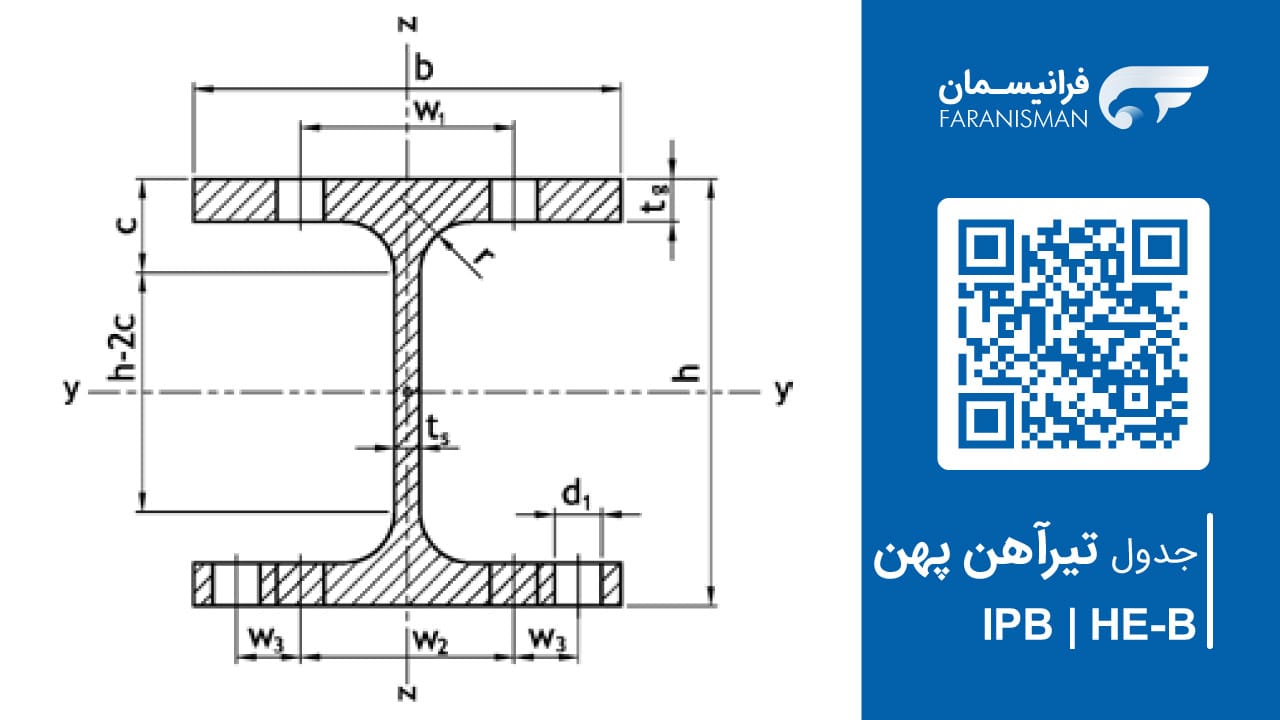

جدول تیر آهن هاش پهن HE-B
دستههای مقاله: جداول مقاطع آهنی و فولادی
انتشار و به روز رسانی: 16/فروردین/1404
زمان مطالعه: 4 دقیقه
| HE-B | h | b | ts s | tg s2 | r | h-2c | Asteg cm2 | A cm2 | G kg/m | Iy cm4 | Wy cm3 | iy cm | Iz cm4 | wz cm3 | iz cm | Sy cm | d1 mm | w1w2 mm | W3 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 100 | 100 | 6 | 10 | 12 | 56 | 5.4 | 26 | 20.4 | 450 | 89.9 | 4.16 | 167 | 33.5 | 2.53 | 8.63 | 13 | 56 | - |
| 120 | 120 | 120 | 6.5 | 11 | 12 | 74 | 7.08 | 34 | 26.7 | 864 | 144 | 5.04 | 318 | 52.9 | 3.06 | 10.5 | 17 | 66 | - |
| 140 | 140 | 140 | 7 | 12 | 12 | 92 | 8.96 | 43 | 33.7 | 1510 | 216 | 5.93 | 550 | 78.5 | 3.58 | 12.3 | 21 | 76 | - |
| 160 | 160 | 160 | 8 | 13 | 15 | 104 | 11.8 | 54.3 | 42.6 | 2490 | 311 | 6.78 | 889 | 111 | 4.05 | 14.1 | 23 | 86 | - |
| 180 | 180 | 180 | 8.5 | 14 | 15 | 122 | 14.1 | 65.3 | 51.2 | 3830 | 426 | 7.66 | 1360 | 151 | 4.57 | 15.9 | 25 | 100 | - |
| 200 | 200 | 200 | 9 | 15 | 18 | 134 | 16.6 | 78.1 | 61.3 | 5700 | 570 | 8.54 | 2000 | 200 | 5.07 | 17.7 | 25 | 110 | - |
| 220 | 220 | 220 | 9.5 | 16 | 18 | 152 | 19.4 | 91 | 71.5 | 8090 | 736 | 9.43 | 2840 | 258 | 5.59 | 19.6 | 25 | 120 | - |
| 240 | 240 | 240 | 10 | 17 | 21 | 164 | 22.3 | 106 | 83.2 | 11260 | 938 | 10.3 | 3920 | 327 | 6.08 | 21.4 | 25 | 96 | 35 |
| 260 | 260 | 260 | 10 | 17.5 | 24 | 177 | 24.2 | 118 | 93 | 14920 | 1150 | 11.2 | 5130 | 395 | 6.58 | 23.3 | 25 | 106 | 40 |
| 280 | 280 | 280 | 10.5 | 18 | 24 | 196 | 27.5 | 131 | 103 | 19270 | 1380 | 12.1 | 6590 | 471 | 7.09 | 25.1 | 25 | 110 | 45 |
| 300 | 300 | 300 | 11 | 19 | 27 | 208 | 30.9 | 149 | 117 | 25170 | 1680 | 13 | 8560 | 571 | 7.58 | 26.9 | 28 | 120 | 45 |
| 320 | 320 | 300 | 11.5 | 20.5 | 27 | 225 | 34.4 | 161 | 127 | 30820 | 1930 | 13.8 | 9240 | 616 | 7.57 | 28.7 | 28 | 120 | 45 |
| 340 | 340 | 300 | 12 | 21.5 | 27 | 243 | 38.2 | 171 | 134 | 36660 | 2160 | 14.6 | 9690 | 646 | 7.53 | 30.4 | 28 | 120 | 45 |
| 360 | 360 | 300 | 12.5 | 22.5 | 27 | 261 | 42.2 | 181 | 142 | 43190 | 2400 | 15.5 | 10140 | 676 | 7.49 | 32.2 | 28 | 120 | 45 |
| 400 | 400 | 300 | 13.5 | 24 | 27 | 298 | 50.8 | 198 | 155 | 57680 | 2880 | 17.1 | 10820 | 721 | 7.4 | 35.7 | 28 | 120 | 45 |
| 450 | 450 | 300 | 14 | 26 | 27 | 344 | 59.4 | 218 | 171 | 79890 | 3550 | 19.1 | 11720 | 781 | 7.33 | 40.1 | 28 | 120 | 45 |
| 500 | 500 | 300 | 14.5 | 28 | 27 | 390 | 68.4 | 239 | 187 | 107200 | 4290 | 21.2 | 12620 | 842 | 7.27 | 44.5 | 28 | 120 | 45 |
| 550 | 550 | 300 | 15 | 29 | 27 | 438 | 78.1 | 254 | 199 | 136700 | 4970 | 23.2 | 13080 | 872 | 7.17 | 48.9 | 28 | 120 | 45 |
| 600 | 600 | 300 | 15.5 | 30 | 27 | 486 | 88.3 | 270 | 212 | 171000 | 5700 | 25.2 | 13530 | 902 | 7.08 | 53.2 | 28 | 120 | 45 |
| 650 | 650 | 300 | 16 | 31 | 27 | 534 | 99 | 286 | 225 | 210600 | 6480 | 27.1 | 13980 | 932 | 6.99 | 57.5 | 28 | 120 | 45 |
| 700 | 700 | 300 | 17 | 32 | 27 | 582 | 114 | 306 | 241 | 256900 | 7340 | 29 | 14400 | 963 | 6.87 | 61.7 | 28 | 126 | 45 |
| 800 | 800 | 300 | 17.5 | 33 | 30 | 674 | 134 | 334 | 262 | 359100 | 8980 | 32.8 | 14900 | 994 | 6.68 | 70.2 | 28 | 130 | 40 |
| 900 | 900 | 300 | 18.5 | 35 | 30 | 770 | 160 | 371 | 291 | 494100 | 10980 | 36.5 | 15820 | 1050 | 6.53 | 78.5 | 28 | 130 | 40 |
| 1000 | 1000 | 300 | 19 | 36 | 30 | 868 | 183 | 400 | 314 | 644700 | 12890 | 40.1 | 16280 | 1090 | 6.38 | 86.8 | 28 | 130 | 40 |
